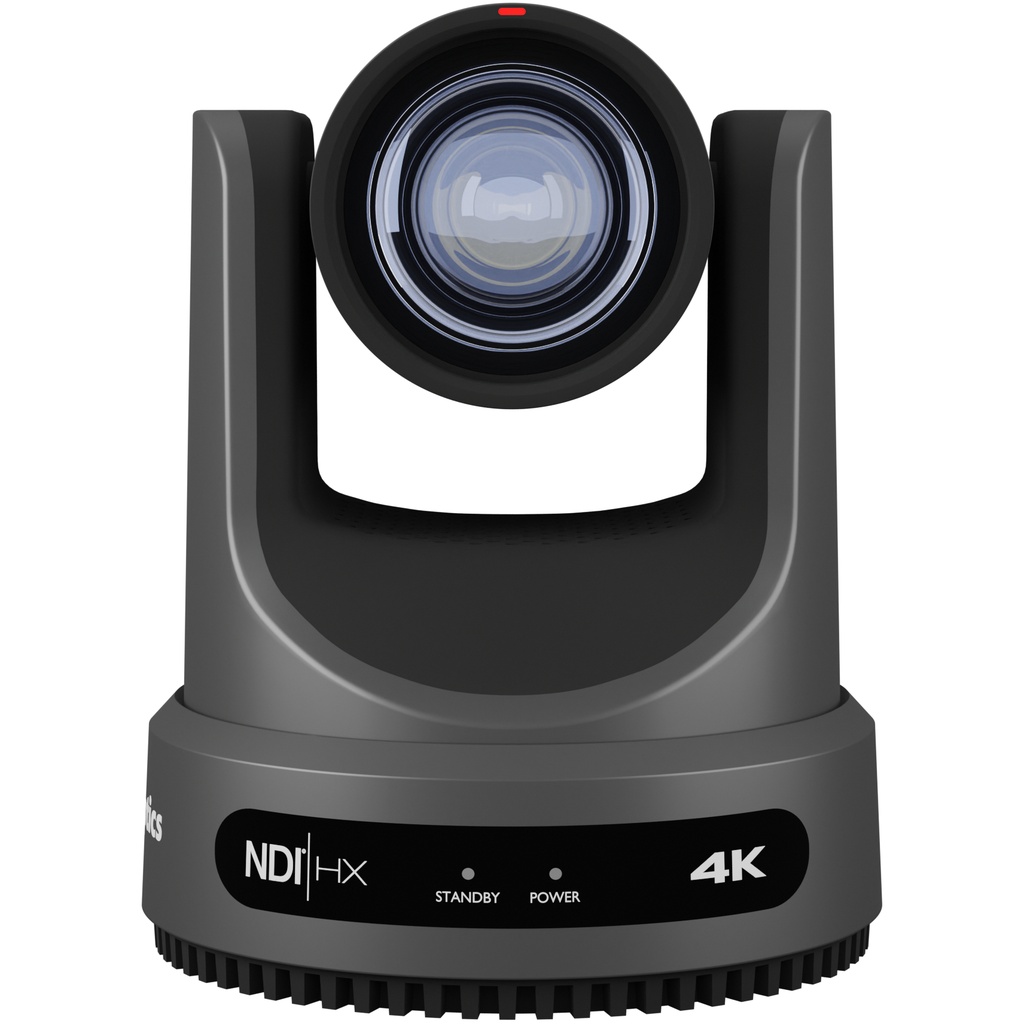

The Move 4K is the latest PTZ camera from PTZOptics and offers auto-tracking for a smarter video production workflow. The Move 4K is capable of transmitting 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still supporting HD and Full HD video resolution devices. The Move 4K offers high low-light performance, PoE+ capabilities and a built-in tally light.

Eigenschaften

Built-in auto-tracking function
Advanced white balance modes
Wide dynamic range
Full frame rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
3D noise reduction
SRT support
Up to 4K resolution @ 60fps
Blackmagic Switcher integration
Broadcast frame rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
5-year manufacturer's warranty

Designed for the future

Each Move 4K camera features SDI, HDMI, USB and IP output and is natively equipped with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities - no need to run software on another computer, so teams no longer need a camera operator. With 12x, 20x and 30x optical zoom, the Move 4K fits seamlessly into any production scenario.

Wide range of mounting options

Mount your PTZ move camera above, below or next to the action to get the ideal viewing angle every time. The new automatic video reversal function detects the orientation of the camera and saves time during installation and setup.

Pan, tilt, zoom, track

Control your production from behind the scenes - or directly in front of the scenes. The Move 4K's auto-tracking feature can target a specific person, even when other people are in the frame. The user can switch between presenters on stage with just one click.
In addition to the Move 4K's auto-tracking features, users also have access to our latest web UI, which has been updated to provide everything you need in one simple menu. Almost every function in the web UI has a tutorial function, perfect for inexperienced producers navigating the settings for the first time.

Control in your own way

Users can control Move 4K cameras with video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or try a hardware joystick controller such as the IP Joystick, Serial Joystick or SuperJoy. The options for camera control are endless, allowing you to control your camera in a way that suits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world. A range of tools are available for this, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and YouTube.

Warranty and support

The Move 4K comes with a 5-year parts and labour warranty. PTZOptics stands by its promise to protect your investment by providing repairs or replacement products for the duration of the warranty.

When you contact PTZOptics, you don't get an automated system, you get a team of in-house experts ready to help you. The PTZOptics experts can be contacted via phone, email, chat, a forum, a support ticket system, a Facebook user group and much more. here can be achieved.

Technical specifications

Image sensor and lens

Video sensor:
12x: 1/2.5 inch, UHD CMOS sensor, effective pixels: 8.51M
20x and 30x: 1/1.8 inch, CMOS, effective pixels: 8.42M
Lens:
12x: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
20x: f = 6.25mm ~ 125mm, F1.58 ~ F3.95
30x: f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Lens (35mm equivalent):
12x: 25mm ~ 299mm, F1.8 ~ F2.6
20x: 31mm ~ 589mm, F1.58 ~ F3.95
30x: 32mm ~ 825mm, F1.61 ~ F5.19
Resolution and frame rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital zoom: Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of view:
12x: Horizontal: 6.9° (telephoto) ~ 72.5° (wide-angle), vertical: 3.9° (telephoto) ~ 44.8° (wide-angle)
20x: Horizontal: 3.5° (telephoto) ~ 60.7° (wide-angle), Vertical: 1.9° (telephoto) ~ 34.1° (wide-angle)
30x: Horizontal: 2.5° (telephoto) ~ 59.2° (wide angle), Vertical: 1.4° (telephoto) ~ 34.6° (wide angle)
Min. lux: 0.5 lux @ (F1.8, AGC ON)
Shutter speed : 1/30s ~ 1/10000s

Pan/tilt movement

Swivel speed: 1.7° ~ 100°/s
Tilt movement: +90° to -30
Tilting speed: 1.7° ~ 69.9°
Presets: 255 presets
Video tracking supported
Supports image flip, mirror and freeze

Power options

Power supply DC 12V / PoE+ (802.3at)
Input power 18W (Max)

Physical specifications

Material: aluminum, plastic
Color: White and grey
Dimensions (W x D x H):
12x and 20x: 168.4 x 141.5 x 164.5 mm
30x: 170 x 181 x 228 mm
Weight:
12x and 20x: 1.47 kg
30x: 2kg
Working environment: Indoor area
Operating temperature: -10°C to 40°C
Storage temperature: -40°C to 60°C

Plug connector on the back

HD video output:
1x RJ45: 10/100/1000M Adaptive Ethernet connection424M standard
1x HDMI: Version 2.0
1x USB 2.0: Type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, in accordance with SMPTE 424M standard
Audio interface:
1x 3.5mm line level input
Communication interface:
1x 8-pin mini-Din RS232 input, maximum distance: 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8-pin mini-Din RS232 output, maximum distance 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2-pin Phoenix port, RS485 input / output, max. distance 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network interface:
RJ45: 10/100/1000M Adaptive Ethernet port, supports PoE
Power connection:
Type JEITA (DC IN 12V)

Cameras
Zoom	12x or 20x or 30x
Others
Color	Grey or White
