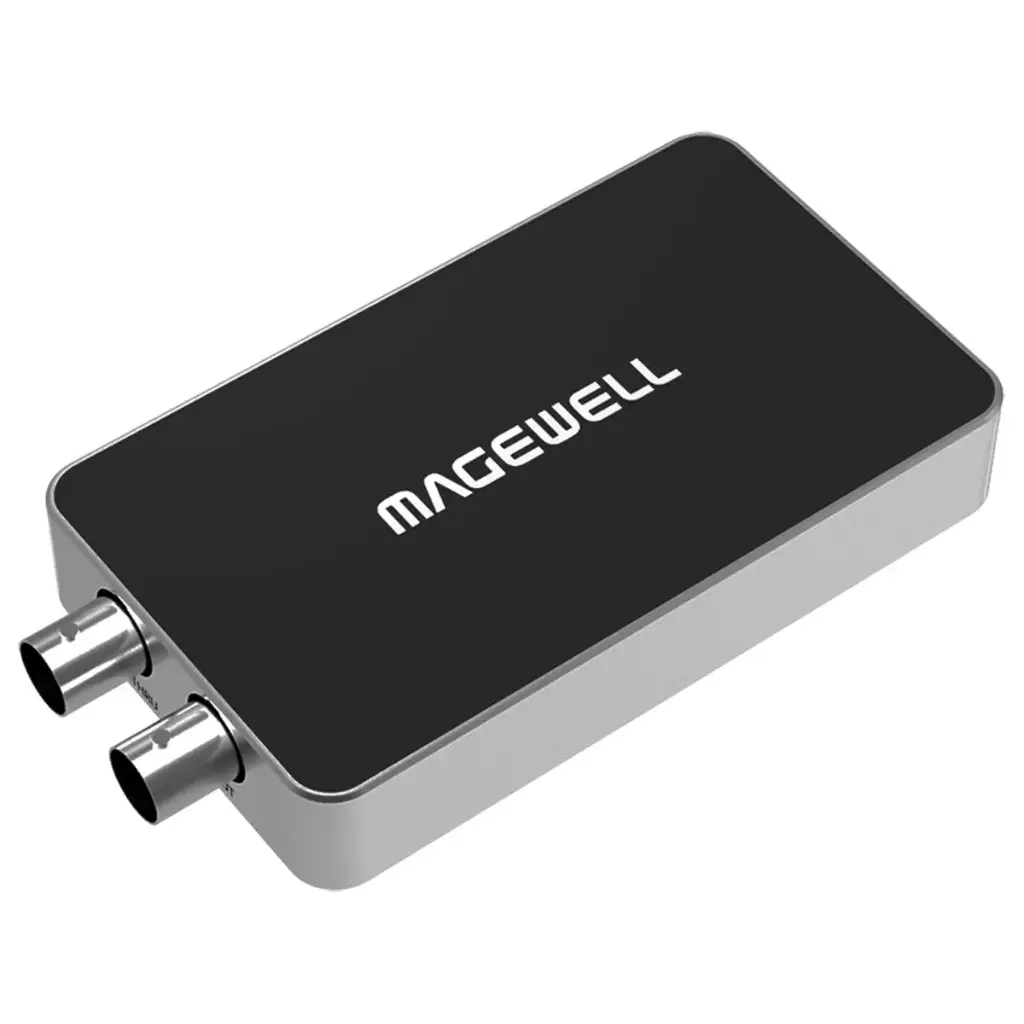

Magewell USB Capture SDI Plus
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6936572400877 |
Artikelnummer |
320500000 |
One-channel 2K capture device:
Captures SD/HD/3G/2K SDI + embedded audio
Loop-through SD/HD/3G/2K SDI
Audio input via line-in
HDMI audio output via headphones
Extracts embedded SDI audio and outputs via line-out
Interface
Specifications and features
Interface
Input Interface & Loop-Through Interface:
One SD/HD/3G/2K SDI input + embedded audio
One SDI loop-through
Supports an input and loop-through resolution of up to 2048x1080 pixels
Audio input/output interface: 3.5mm audio socket for line in/line out host interface
Host interface: USB 3.0, compatible with USB 2.0
OS
Windows, Linux, Mac, Chrome OS
Recording format
Supports resolutions up to 2048x1080
Supports frame rates up to 120fps
Recording of embedded 2-channel audio or analog audio via a 3.5mm line-in interface
Detection of SDI signals transmitted over a long distance: up to 150m for 3G SDI signals
Included software
USB Capture Utility, Capture Express, etc.
Compatible software
Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio, XSplit, etc.
Further properties
Automatic detection of the input signal format
SDK for Windows, Linux and Mac
Suitable for 24/7 operation
LED status display
3-year guarantee
110.7mm (L) x 56.8mm (W) x 17mm (H)
Accessories included
USB 3.0 cable
Video I/O, converters and streaming
Magewell is a manufacturer of video capture hardware, IP converters and streaming encoders. From our point of view, there are some special features that clearly set Magewell products apart from the market environment:
- Sophisticated and reliable products
- Wide range of functions in conjunction with a sophisticated GUI
- High-quality workmanship (metal housing) and therefore very robust
- Suitable for 24/7 operation
- Extensive driver support (macOS, Win, various Linux)
- Various cooling solutions available for the capture cards - perfect for integration into your own products
Some of this may sound mundane, but if you are looking for products that you can install and never have to "touch" again, our recommendation is: Magewell. Many manufacturers use Magewell products on an OEM basis in their solutions.
Control Hub
Control Hub enables centralized management of multiple Magewell streaming and IP conversion devices. It can also convert streams between multiple protocols.
Capture Express
Capture Express is software for previewing, recording or streaming an input source from Magewell capture devices.
Plugin for Premiere
The Magewell plugin for Premiere gives users direct access to Magewell capture devices via Adobe Premiere Pro to record video and audio.
NDI Bridge
Magewell's Bridge for NDI software works with Magewell capture devices to create, receive and preview NDI streams on a network.
Do you have any questions?
Would you like to know if there is a suitable Magewell product for your requirements? Or do you need support with a project? Please contact us!
