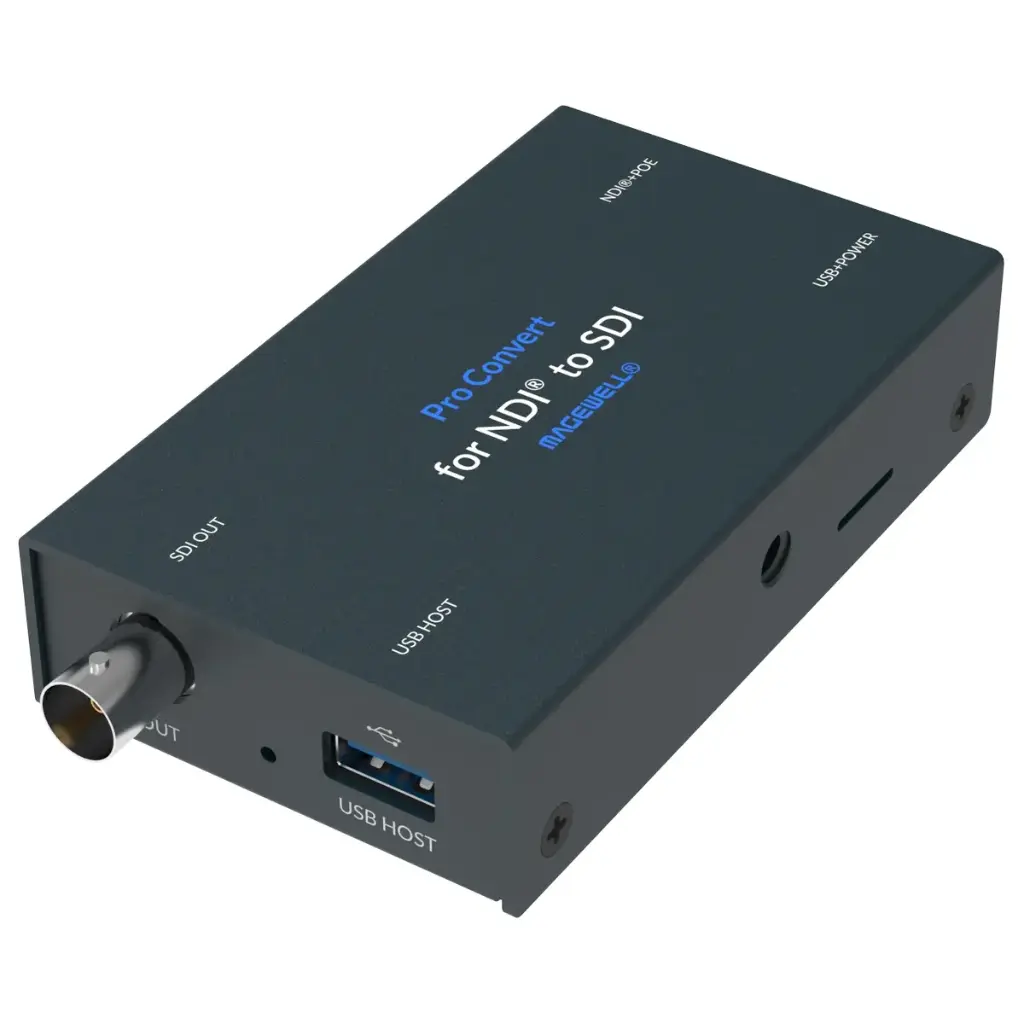

Magewell Pro Convert for NDI to SDI
-
Free shipping in Germany
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6936572401348 |
Artikelnummer |
64150 |
Converts a live NDI® stream to SDI:
- Connects baseband presentation or distribution devices to IP-based media networks
- Supports NDI technology including full bandwidth NDI and high efficiency NDI|HX mode
- Supports streaming protocols such as SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP
Interface
Specifications and features
Output features
- Supports up to 1920x1080 60fps SDI output
- Support for 48KHz, 16-bit 8-channel audio streams
Decoding features
- Supports the decoding of NDI streams with up to 2K 60fps
- Supports the decoding of Full NDI® and NDI®|HX
- Supports NDI 4.x
- Detection of NDI devices across network segments
- Compatible with H.264/H.265 streams in additional protocols such as RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS via UDP/SRT/RTP
Further properties
- Very low latency
- Advanced configuration and device status via intuitive web GUI, keyboard/mouse or on-board control
- HTTP-based APIs for custom integration
- Image inversion for inverted projector installations
- Controllers for security area controls
Accessories included
Power adapter (region of choice: US, EU, UK, AU, KR, JP)
USB TypeA to TypeB cable
L-bracket
Video I/O, converters and streaming
Magewell is a manufacturer of video capture hardware, IP converters and streaming encoders. From our point of view, there are some special features that clearly set Magewell products apart from the market environment:
- Sophisticated and reliable products
- Wide range of functions in conjunction with a sophisticated GUI
- High-quality workmanship (metal housing) and therefore very robust
- Suitable for 24/7 operation
- Extensive driver support (macOS, Win, various Linux)
- Various cooling solutions available for the capture cards - perfect for integration into your own products
Some of this may sound mundane, but if you are looking for products that you can install and never have to "touch" again, our recommendation is: Magewell. Many manufacturers use Magewell products on an OEM basis in their solutions.
Control Hub
Control Hub enables centralized management of multiple Magewell streaming and IP conversion devices. It can also convert streams between multiple protocols.
Capture Express
Capture Express is software for previewing, recording or streaming an input source from Magewell capture devices.
Plugin for Premiere
The Magewell plugin for Premiere gives users direct access to Magewell capture devices via Adobe Premiere Pro to record video and audio.
NDI Bridge
Magewell's Bridge for NDI software works with Magewell capture devices to create, receive and preview NDI streams on a network.
