Bolin SD530H
-
Free shipping in Germany
EAN |
6973775122250 |
Artikelnummer |
SD530H |

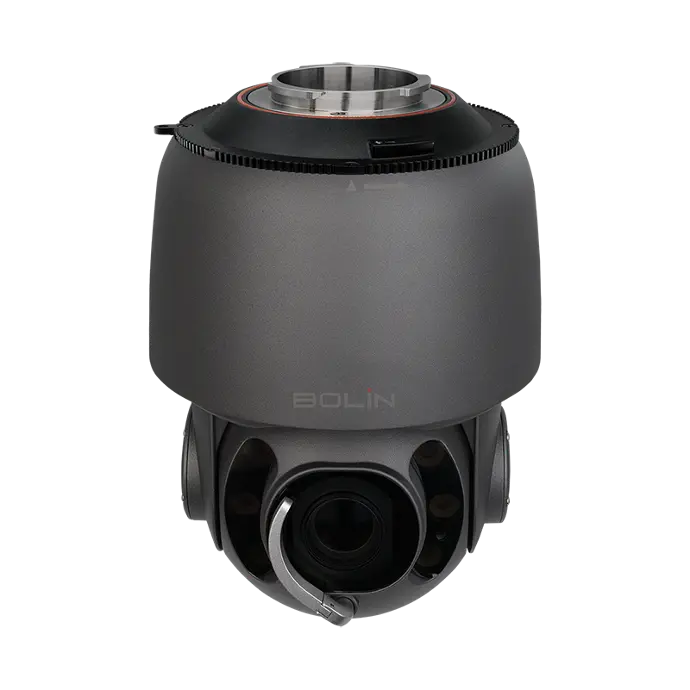

Bolin outdoor camera SD530H (Gen3)
The Bolin Outdoor Camera SD530H (Gen3) is the evolution of the popular SD530SHD-B-RSN2PW True Dual Output SDI FHD PTZ camera. It supports simultaneous HD 3G-SDI and 1080p IP video streaming, has a 30x optical zoom, low latency mode and image stabilizer for use when transmitting high quality images.
The rugged IP67 environmental housing is equipped for use in extreme weather conditions. Zero Deviation Positioning (ZDP) technology ensures high precision and accuracy in preset programming and smooth movement at high and low speed.
BOLIN Dual Output PTZ cameras are ideal for indoor and outdoor use in broadcast, Pro AV and security applications to provide real-time uncompressed video and the ability to stream IP video and remote control over IP.
NOTE: the camera is also available with NDI support under the name SD530NX
Sony Image Block - Super Low Light Performance &
Super Image Stabilizer
- 1/2.8 inch STARVIS II sensor
- Improved high-resolution image quality
- 30x high-resolution optical zoom lens
- Extended AF performance, spot focus - spot AE - spot AWB
- Wide dynamic range (Wide-D)
- Visibility Enhancer (VE)
- Super Low Light in color performance
- Super image stabilizer
True dual output - SDI and IP video
- Simultaneous output of 3G-SDI baseband video and IP streaming for live streaming and remote management.
- True Dual Output that supports up to 1080i59.94 SDI and IP video up to 1080p60. SDI video and IP video can be set independently of each other.
SRT Ready
Deliver high quality, secure, low latency video over the public internet. SRT optimizes streaming performance on networks with secure streams and easy firewall traversal to deliver the highest quality live video over unstable networks.
- High-quality video image
- Low latency
- Secure end-to-end transmission
- Utilization of the Internet
- Open source
FHD IP streaming - IP remote control and view
- Remotely view smooth, stable streaming video (up to 1080p60) plus audio over an IP network via a web browser.
- Support for RTSP, RTMP for IP online video and live streaming.
- Cross-browser compatibility - HTML5 support for Edge, Chrome, Firefox and Safari browsers without a plugin.
- Fully functional PTZ camera IP control via the Visca Over IP protocol.
- Integration with popular VMS - ONVIF (100% passieren Onvif Test Tool result) for IP video control, recording and management.
Robust design - withstands extreme weather conditions
- exists in extreme weather conditions
- Dustproof and waterproof to IP67
- Wind load resistance, non-destructive and continuous operation at up to 60 m/s
- -40 °C to 60 °C (-40°F to 140°F) Operational
- Rain wiper
Image rolling functionality & image stabilization
- Pan, tilt, zoom + the 4th axis
- Setting the image rotation
- 1-15° horizontal adjustment option, allows the image to be adjusted to the angle at which the PTZ camera is aiming at the object.
- Sony Super and Super+ image stabilization
PTZ movement - smooth, precise and quiet
- PAN: 360° kontinuierlich; voll proportional 0,05°〜135°/S
- TILT: 210° (-90° to +120°); fully proportional, speed 0.01° to 60°/s
- Preset: 255 positions, speed 100°/s, 0~5 steps adjustable, accuracy: 0.03°
- Preset picture profile
- Preset motionless
- PTZ track memory
- Quietness less than NC35
- ZDP (Zero Deviation Positioning), position deviation optical self-correction
- Gentle and precise movement
- NDAA-konform
| Cameras | |
|---|---|
| Others | |
| Color | Grey or White |
Professional AV networks with NETGEAR M4250 switches
Whether NDI streams, Dante audio, PoE-powered cameras or complex video walls - the M4250 switches provide you with a platform that is specially tailored to AV-over-IP workflows.
Professionelle AV-Netzwerke mit NETGEAR M4250 Switches
Ob NDI-Streams, Dante Audio, PoE-betriebene Kameras oder komplexe Videowände – mit den M4250 Switches steht dir eine Plattform zur Verfügung, die speziell auf AV-over-IP Workflows abgestimmt ist.
Warum ein NETGEAR M4250 Switch für Ihr AV-Projekt?
Preconfigured video profiles
- Simple selection of preconfigured profiles for NDI®, Dante™, AES67, ST2110 and many more.
- Immediately ready for use without in-depth IT knowledge
- Intuitive web interface with AV-focused design
NDI®-Ready - just get started
- Optimally matched to NDI|HX and NDI High Bandwidth
- Stability and low latency for live productions
- Ideal for PTZ cameras, encoders and NDI multiviewers
Dante™ & AES67 Support
- Precise synchronization and reliable audio transmission
- No manual VLAN setup required
- Maximum flexibility for audio routing and management
Power-over-Ethernet
- Supplies cameras, controllers and encoders directly via the network cable
- Up to 90W PoE budget per port (depending on model)
- Reduces cabling and installation effort
Fanless or whisper-quiet
- Models with passive cooling for studios, conference rooms & theaters
- Rack mounting or desktop operation possible
Lifetime guarantee
- Lifetime limited hardware warranty for the original purchaser
- NBD replacement (Next Business Day) for registered products
- 90 days free technical support
- Optional ProSUPPORT contracts available
Our offer - Consulting & Integration
Selection of suitable M4250 models
Optimization for NDI & Dante
Setting up VLANs, QoS and PoE
Integration into existing infrastructure
Unser Angebot – Beratung & Integration
Auswahl der passenden M4250 Modelle
Optimierung für NDI & Dante
Einrichtung von VLANs, QoS und PoE
Integration into existing infrastructure
