Kiloview CUBE R1 Recorder System
-
Free shipping in Germany
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6970631327064 |
Artikelnummer |
CUBE R1 |

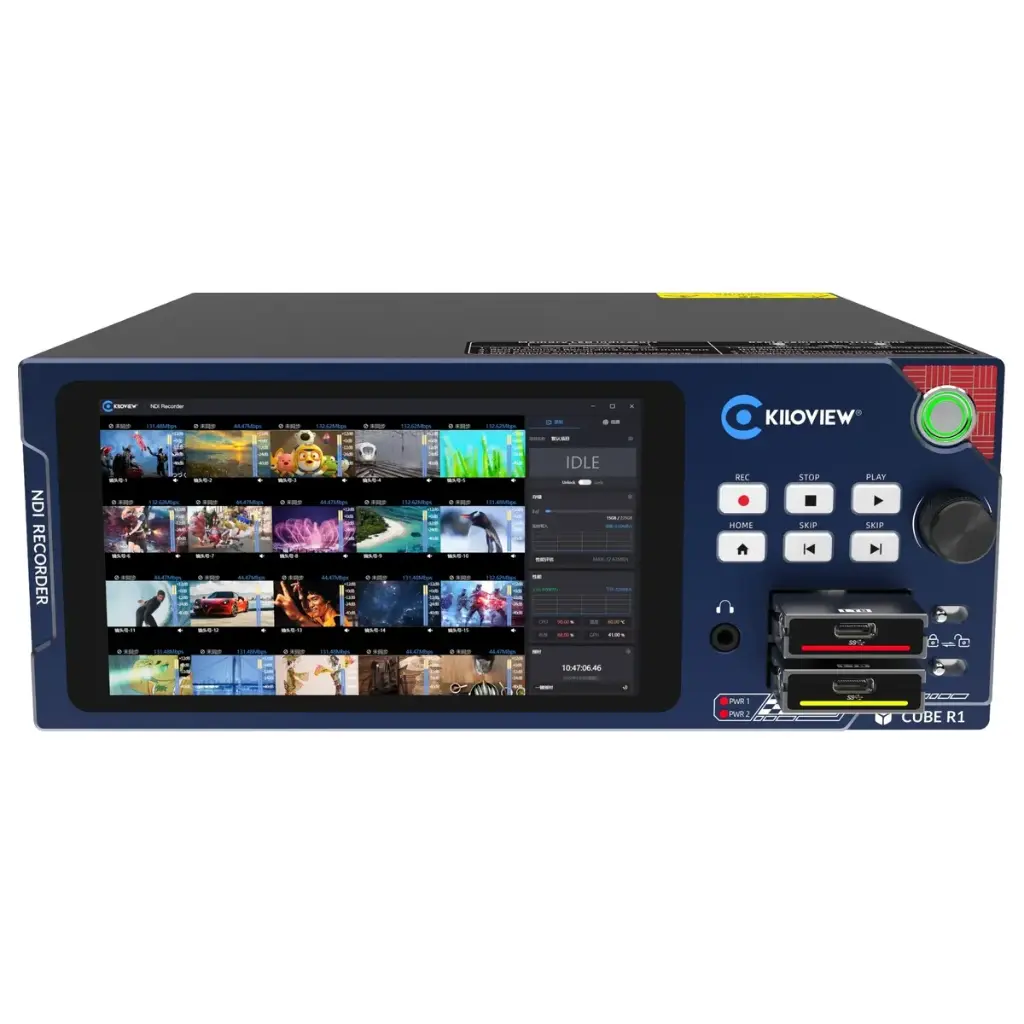

The CUBE R1 is a multi-channel NDI recorder. It can synchronously record up to nine HD or four 4K channels from NDI sources simultaneously.
Equipped with two hot-swappable memory slots, the CUBE R1 supports non-stop recording. Both 10G SFP+ and 1G Ethernet ports enable different network environments.
Recording of up to 9CH NDI sources, any resolution, any format
- Up to 9CH video preview and recording in synchronized status with 1/4/9 grid for preview.
- Automatic detection of NDI sources in the same network or of NDI sources in other networks by NDI Discovery Server.
- Recording of files in .mov format, with fixed size or fixed length, locally via SSD.
Plug-and-play, non-stop recording
The CUBE R1 is a turnkey solution with plug-and-play operation. It supports non-stop recording as it is equipped with two hot-swappable SSD slots.
Synchronous recording
The CUBE R1 supports NTP servers to ensure that all NDI sources can be recorded synchronously.
One-click recording is supported, with a single button press you can start recording multiple channels simultaneously.
Various multi-view layouts for monitoring
There are 1/4/9 multi-view layouts to choose from. You can show/hide preview images/VU meters.
Customizable overlays for each window: audio level, tally status, current bit rate, synchronization status, source names.
Recording in fixed length/size
You can choose whether you want to save the recording files in a fixed time span or a fixed file size.
When a file is full, the recorder automatically records it immediately in the next file.
Built-in LCD touch screen for real-time monitoring
A built-in LCD touch screen allows the user to check the status of hard disk space, CPU, temperature, bandwidth and other important parameters that can affect recording quality and process.
Label your sources
Label your video/audio sources freely to identify each individual source.
Technical specifications
- Maximum recording channels: 9
- Maximum input resolution: 4KP60
- Output: 1×HDMI
- USB port: 1×Type c port for USB extension
- LCD screen 5.5'' touchscreen with a resolution of 1920×1080
- Recording file format: .mov
- Housing: 2U, half width
- Network connections: Dual 10G SFP+ ports and 1G RJ45 network connection
- redundant power supply
Professional AV networks with NETGEAR M4250 switches
Whether NDI streams, Dante audio, PoE-powered cameras or complex video walls - the M4250 switches provide you with a platform that is specially tailored to AV-over-IP workflows.
Professionelle AV-Netzwerke mit NETGEAR M4250 Switches
Ob NDI-Streams, Dante Audio, PoE-betriebene Kameras oder komplexe Videowände – mit den M4250 Switches steht dir eine Plattform zur Verfügung, die speziell auf AV-over-IP Workflows abgestimmt ist.
Warum ein NETGEAR M4250 Switch für Ihr AV-Projekt?
- Simple selection of preconfigured profiles for NDI®, Dante™, AES67, ST2110 and many more.
- Immediately ready for use without in-depth IT knowledge
- Intuitive web interface with AV-focused design
- Optimally matched to NDI|HX and NDI High Bandwidth
- Stability and low latency for live productions
- Ideal for PTZ cameras, encoders and NDI multiviewers
- Precise synchronization and reliable audio transmission
- No manual VLAN setup required
- Maximum flexibility for audio routing and management
- Supplies cameras, controllers and encoders directly via the network cable
- Up to 90W PoE budget per port (depending on model)
- Reduces cabling and installation effort
- Models with passive cooling for studios, conference rooms & theaters
- Rack mounting or desktop operation possible
- Lifetime limited hardware warranty for the original purchaser
- NBD replacement (Next Business Day) for registered products
- 90 days free technical support
- Optional ProSUPPORT contracts available
Our offer - Consulting & Integration
Selection of suitable M4250 models
Optimization for NDI & Dante
Setting up VLANs, QoS and PoE
Integration into existing infrastructure
