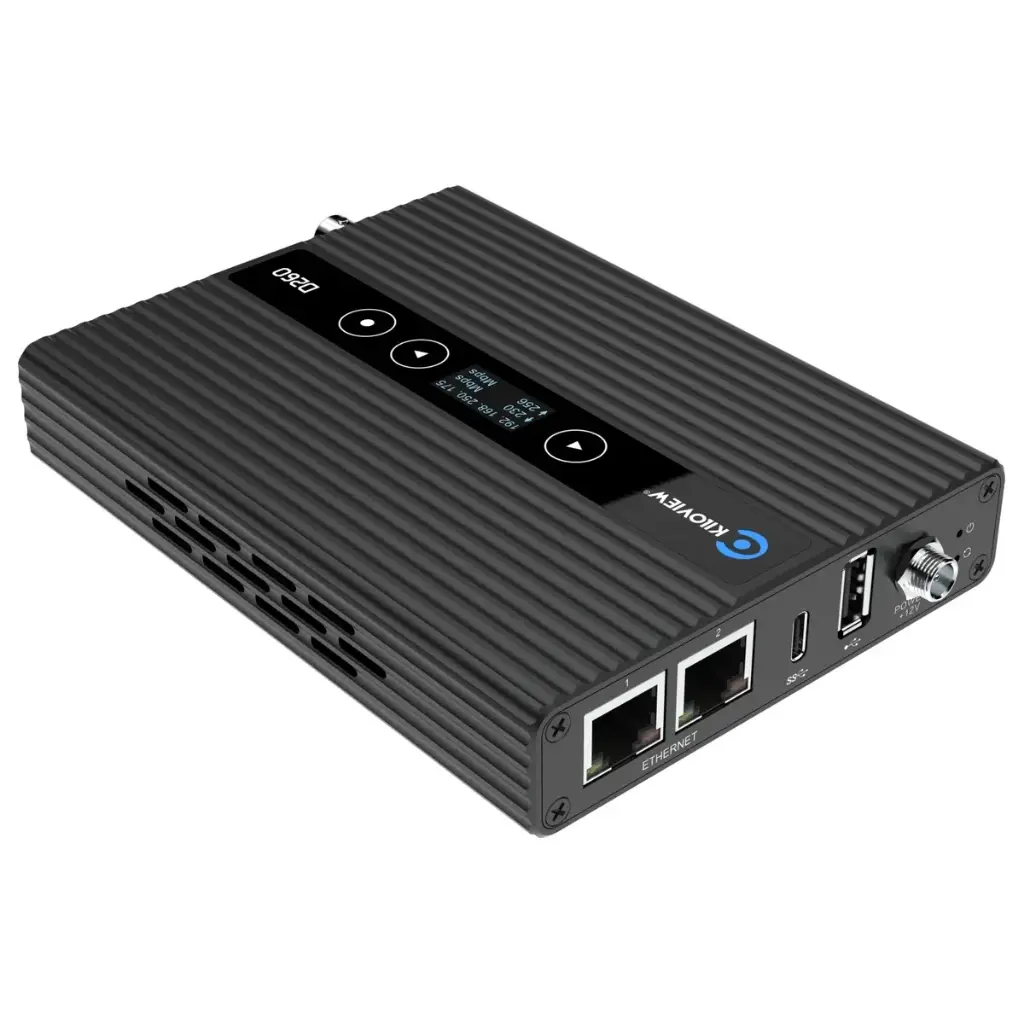

Kiloview D260 (HD IP to SDI/HDMI/VGA Video Decoder)
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6970631323141 |
Artikelnummer |
D260 |
D260 is Kiloview's latest H.265 1X3G-SDI+2XHD HDMI decoder that builds on the capabilities of our original DC230 decoder with enhanced new features including improved decoding performance, expanded connectivity, more supported protocols and a new LCD display. Everything you need for decoding is included in this cost-effective single unit.
Improved decoding performance with H.265/H.264
The D260 now supports decoding in H.265 format and up to 4-channel video streams in 1080p60 simultaneously. All 4 video outputs can be customized as single display or PIP with adjustable values.
Supports multiple protocols
For all IP-based video transmission processes, D260 supports the latest NDI technology - NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP and RTP/RTSP
* NDI|HX3 support is still in beta stage.
Extended output interfaces
As an upgraded version of the DC230, the D260 offers a few more interfaces for advanced applications. The D260 is now equipped with two HDMI 2.0 ports, one 3G-SDI port and two USB ports (one USB Type-A and one USB Type-C) to ensure scalability and can output in three ways: Independent, combining multi-channel video streams or replicating a single stream for simultaneous streaming.
16 Preview + 4 Output
D260 supports the "Preview + Output" mode, in which you can preview 16 video streams and select 4 of them for simultaneous display on the screen for output. This function can also be used for monitoring (PVW/PGM).
Powerful audio decoding
D260 is also very powerful when it comes to audio decoding. With a long list of supported audio formats, including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, it is also capable of switching audio in/out, switching audio mix and audio gain in real time and alternatively outputting via its HDMI connectors, SDI connector and 3.5mm line-out connector.
Customized layouts
Custom multi-output display is also allowed for D260 (including custom raster/PIP/simple drag and drop). All things about the display (bit rate and resolution) can be customized.
Display and touch button
D260 is equipped with an LCD screen with touch buttons for better usability. With the integrated LCD screen, you can check the transmission status in real time.
Technical specifications
Video output
2x HDMI, 1x 3g-SDI
Audio output
SDI, HDMI and 3.5 mm audio output
Video formats
H.264(AVC), compatible with Baseline/Main/High Profile, up to Level 5.2；
- H.265(HEVC), compatible with Main Profile, up to level 5.1
Audio formats
AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
Streaming protocols
NDI|HX2.0/NDI|HX3.0*/SRT/RTMP/RTMPS/HLS/TS via UDP/RTP/ RTSP
Video decoding
4 channels H.264(AVC)/H.265(HEVC) video streams with 1080p60 resolution
Display
0.96'' LCD display and touch button
Layouts
User-defined 1/2/3/4 layouts
Intercom
Yes
OSD
Yes
Tally
Yes
Network connections
Ethernet ports: 2x10/100M/1000M
USB ports
1x USB 2.0 Type-C
1x USB 2.0 Type-A
Management
WebUI/ KiloLink Server
Power supply/consumption
DC 12V/1A, 7W (Max)
Operating temperature
-20℃~60℃
Size
162.85mm x 104mm x 25mm
Weight
328,18g
