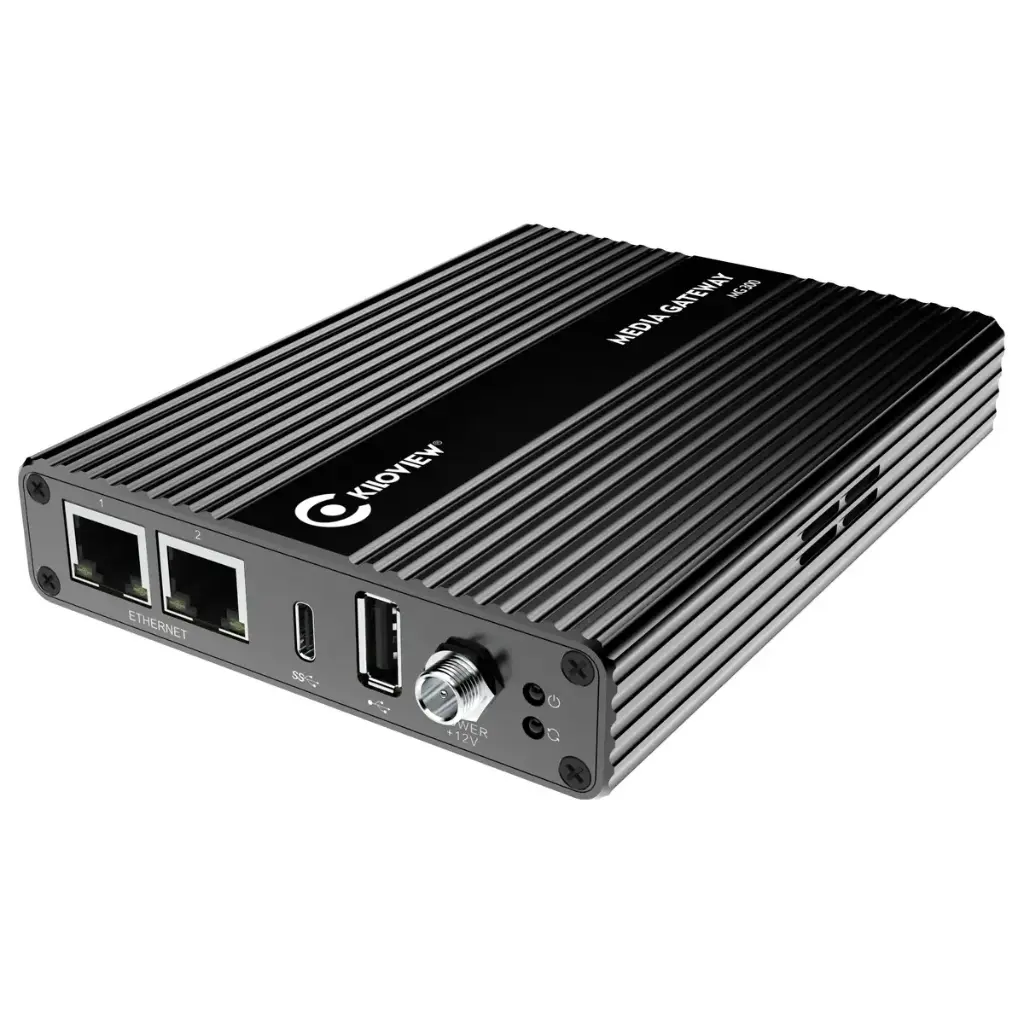

Kiloview MG300 V2
-
Free shipping in Germany
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6970631323158 |
Artikelnummer |
MG300 V2 |
The Kiloview MG300 Media Gateway is a powerful multifunctional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP and HLS to SDI and HDMI. This can be done with same or different content, multi-view output and streaming, video image segmentation, protocol cross-conversion, stream media and distribution services.
Multiple protocols
MG300 is compatible with NDI®|HX (2.0), SRT, RTMP, RTMPS, RTSP, TS-UDP and HLS, etc. It supports decoding with these different protocols, at the same time it supports cross conversion of up to 9 protocols. Each input stream is converted into 4 same or different output protocols.
Powerful IP stream function
Multi-channel video streams can be republished as a multi-view video source with a free layout.
Up to 9 channels of IP streaming distribution (including the multi-view video source), each stream can be transmitted to up to 4 identical or different destinations simultaneously.
Media server
The MG300 supports up to 50 simultaneous accesses for the distribution of streams/live streaming.
(Note: The actual simultaneous access capability depends on the specific network bandwidth, video format and other factors. The transmission limit of the device is 600Mbps).
Transcoder function
The Kiloview MG300 offers video transcoding between H.264 and H.265, and can also combine multiple video streams into a combined video and forward it to the live broadcast platforms.
Decoding function
MG300 supports the decoding of up to 4K H.264/ H.265 IP streams and decodes the streams to output 3G-SDI and 4k HDMI. It supports the simultaneous decoding of up to 9 channels of video. Note: 9 channels at 1080P30, or 8 channels at 1080P60, or 4 channels at 4KP30.
Low latency and high quality
The intelligent delay control technology enables a decoding delay of less than 200 ms in a network environment!
Image enhancement and fault-tolerant technology for low-code video with 10% network packet loss, etc., clear and distortion-free decoding output.
Supports RTMP server
With the RMTP server, the encoder can transmit the video directly to the Kiloview decoder, which uses the RTMP protocol for decoding - without the need for an RTMP platform
Dual Output
3G-SDI and 4K HDMI dual interface for output. The output content can be either the same or different.
Note: HDMI output up to 3840×2160@60, SDI up to 1920×1080@60.
Individual output display
Free layout: The output can be displayed either in grids or in a free layout with user-defined De-Sign, PIP, PBP, POP, just as you wish.
Free resolution: The output resolution is adjustable, de-interlace, frame rate adjustable
Free output background and OSD
Video preview function
With the updated function, you can preview 16 real-time video streams or images on the web page, of which you can select 9 for output on the screen.
Technical specifications
Network
2x 100M/1000M RJ45 adaptive Ethernet
Decoding output
1x SD/HD/3G-SDI, up to 1080P 60Hz
1x HDMI, up to 3840*2160@60Hz
Analog audio output
1x 3.5mm line out
Analog audio input
1x 3.5mm Line-In
USB
1xUSB 3.0 Type-A
Access protocol
NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF)
Output protocol
NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
Protocol conversion
9 channels1080P video conversion
Streaming distribution
50 channels for RTSP, 36 channels for RTMP/SRT
(Not more than 800Mbps)
Live streaming
9 channels x 4 channels 1080P
Number of decoding
4K 30Hz H.264/H.265: up to 4 simultaneous channels
1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265: up to 9 channels simultaneously
Video decoding standard
H.264, H.265
SDI output format
1080P60/59.94/50, 1080P30/29.97/25/24/23.98, 1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
HDMI output format
4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
Compatible with VESA standard format
Video rate range
128Kbps ~ 40Mbps
Audio decoding
AAC G.711 (aLaw/uLaw)
Audio data range
AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
Decoding delay
≤200ms
Split display style
Supports 1/2/3/4/5/6/7/8/9 splitting
Supports re-encoding of the split and recombined video for live streaming/broadcasting
The image supports up to 1080P60 H.264 encoding
Management interface
web
Remote Management + Remote Firmware Upgrade
supports
Operating temperature
-25 ~ 60°C
Dimensions and weight
140 mm x 105 x 28mm, 380g
Power
≤6W
Power supply
12V/1A
