PTZOptics SuperJoy IP/Serial
-
Free shipping in Germany
-
Ordered by 3 pm - dispatch on the same day.
EAN |
0840170500005 |
Artikelnummer |
PT-SUPERJOY-G1 |

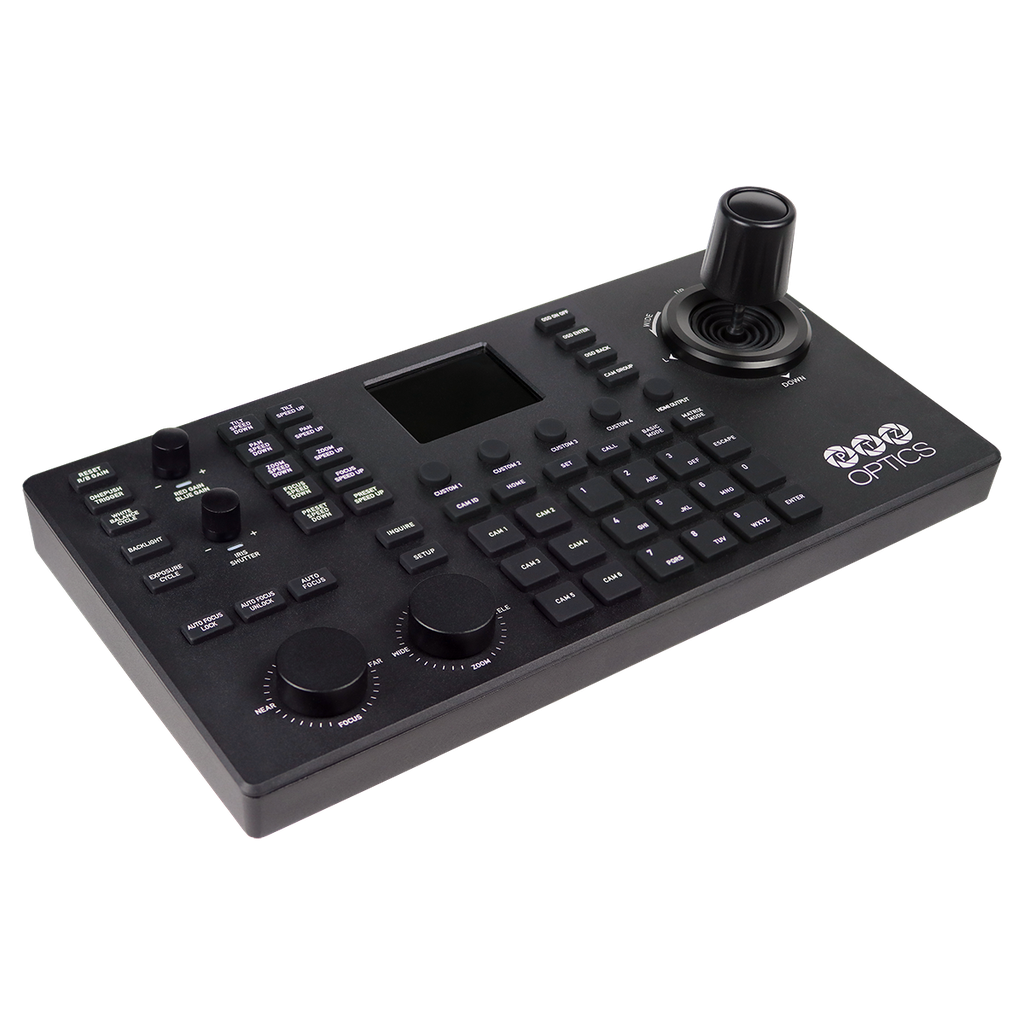

A PTZ camera joystick controller for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt and zoom camera operation to the next level with a simplified user interface and advanced controls for power users.
Production in real time
The SuperJoy offers an intuitive, tactile interface that simplifies and streamlines even the most complex production setups.
- The SuperJoy's HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed that can be used. This HDMI video output is ideal for viewing cameras over a local network. In this way, a SuperJoy controller can be set up anywhere on a network to enable PTZ camera controls with a low latency live video preview.
- Ergonomic, rubberized controls and pressure-sensitive dials for precise tuning without the need for OSD adjustments
- Status-dependent, backlit buttons and knobs indicate the available camera modes, while the optional tablet/computer control enables remote monitoring
Individual control for a wide range of cameras and devices
The PTZOptics SuperJoy Joystick Controller is a comprehensive solution that enables combined serial and network-based control of PTZ cameras of any generation.
- Simultaneous pan, tilt and zoom control of IP, NDI® and serial cameras from various brands such as PTZOptics, HuddleCamHD, Sony, BirdDog and NewTek
- If something is IP-controlled, the SuperJoy can probably control it too - cameras, lights, projector screens and more - with four customizable buttons
- Powerful super preset buttons are programmable to trigger synchronized multi-preset commands for up to five individual camera groups with up to eight cameras each
From power users to beginners: a controller for everyone
With three user-centered control modes tailored to different experience levels, the SuperJoy offers flexibility for production teams with different backgrounds and experience.
- Use the Basic and Basic Plus mode to limit the functions to presets and the control of a single camera.
- In matrix mode, operators can call up presets for up to three cameras.
- Experienced users can program their own buttons for production automation
Technical specifications
- Connections: RS-232, RS-485, RS-422, RJ-45
- Control protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony and NDI®
- Maximum number of cameras: 28 cameras in total (5 groups with 7 channels)
- Recommended maximum distance: RS-232 / RS-422: 15m; RS-485: 1,200 m and more; Ethernet: 100m
- Baud rate: 1200 -19200 bps
- Power supply 6W112VDC / PoE (802.3af), use only one power source at a time
- Working temperature: -10° C +50°C
- Humidity: 10% ~ 90% (non-condensing)
- Weight: 1.70 kg
- Dimensions (mm) 370 W x 180 D x 101 H
