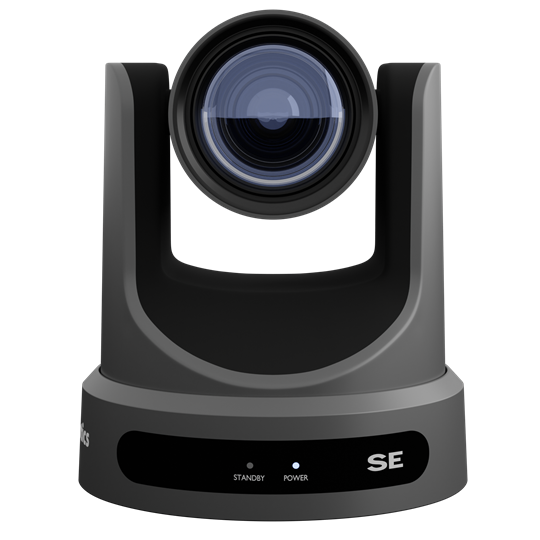

PTZOptics Move SE PTZ camera
-
Free shipping in Germany
-
5-year guarantee
-
Ordered by 3 pm - dispatch on the same day.
EAN |
0840170500654 |
Artikelnummer |
PT12X-SE-GY-G3 |
The PTZOptics MOVE SE series is the successor to the G2 series. The biggest innovations are the camera's integrated auto tracking and a USB connection to operate the camera directly on the computer (UVC/webcam) without a driver.
Main features:
- SDI, HDMI, USB, IP and NEW: including NDI output
- available with 12X, 20X and 30X zoom
- NDI®|HX included (since May 2024 through free firmware upgrade)
- Advanced white balance modes
- Wide Dynamic Range
- Supported resolutions and frame rates: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
- SRT support
- 2D & 3D noise suppression
- 5-year manufacturer's warranty
Panning, tilting, zooming, tracking.
With Move SE's auto-tracking features, users can control their production from behind the scenes - or right in front of them. What's more, Move SE's auto-tracking feature allows users to capture a specific person, even if there are other people in the frame, and switch between presenters on stage with just one click. In addition to the Move SE's auto-tracking features, users also have access to PTZOptics' latest web UI, which has been updated to provide everything you need in one simple menu. Nearly every function in the web UI has a learn function, perfect for newcomers navigating the settings for the first time.
From hardware to software, there are countless camera control options that allow you to control your camera to suit your workflow.
Control as you wish
Users can control Move SE cameras with video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster - or try one of our hardware joystick controllers such as our IP Joystick, Serial Joystick or the SuperJoy. The options for camera control are endless, allowing you to control your camera in a way that suits your workflow.
Move SE cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® Bridge (with NDI® upgrade) and cloud-based software such as Zoom. Users can also send live streams directly to content delivery networks such as Facebook and YouTube.
Free software for PTZOptics users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction and automatic tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Tools for camera configuration and management
- Utilities for support and testing
- And much more!
Unsurpassed guarantee
With a 5-year warranty included as standard with every product, you can be confident that PTZOptics solutions will perform from day one and for many years to come.
The Move SE comes with a 5-year parts and labor warranty.
Technical data
Image Sensor & Lens
- Video Sensor 1/2.8'', CMOS, Effective Pixel: 2.07M
- Resolution and Frame Rate 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
- Digital Zoom Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
- Min. lux 0.5 lux @ (F1.8, AGC ON)
- Shutter 1/30s ~ 1/10000s
- Lens 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
- 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
- 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8
- White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
- Backlight Compensation Supported
- Digital Noise Reduction 2D & 3D Digital Noise Reductions
- Field of View 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
- 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
- 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide)
Pan/tilt movement
- Pan movement ±170°
- Pan speed 1.7° ~ 100°/s
- Tilt Movement +90° to -30
- Tilt Speed 1.7° ~ 69.9°
- Image Flip, Mirror and Freeze Supported
- Presets 255 presets
- Preset Accuracy 0.1°
Power Options
- Power supply DC 12V
- Input Power 2A (Max)
- PoE+
Physical Specifications
- Material Aluminum, Plastic
- Color White and Gray
- Dimensions (W x D x H) 5.6" W x 6.7" D 6.5" H (7.88" H max height w/ tilt up)
- 142mm W x 169mm D x 164" H (189mm H max height w/ tilt up)m
- Weight 3.2 lbs. (1.445 kg)
- Working Environment Indoor
- Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
- Storage Temperature -40°F ~ 140°F (-40°C to 60°C)
Rear Board Connectors
- HD Video Output 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
- 1x HDMI: version 1.3
- 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C
- 1x USB 3.0 Type C
- Audio interface 1x 3.5mm line level input
- Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
- 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
- 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
- IR 4x IR Addresses, Max distance 30ft / 9m
- Power Jack JEITA type (DC IN 12V)
| Cameras | |
|---|---|
| Zoom | 12x or 20x or 30x |
| Others | |
| Color | Grey or White |
