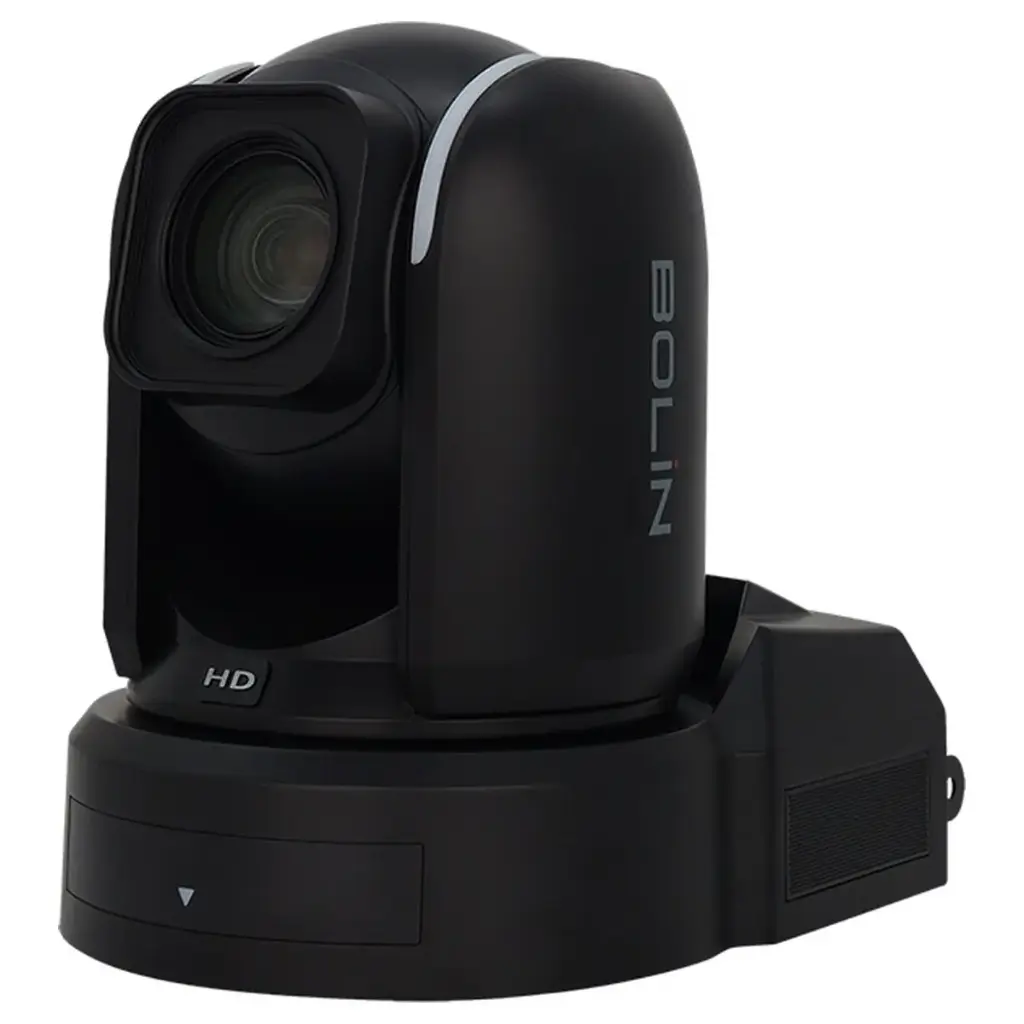

Bolin R9-230H
-
Free shipping in Germany
EAN |
6973775121505 |
Artikelnummer |
R9-230H |
The Bolin Red Line R9 series consists of high-quality and extensively equipped PTZ cameras with optional NDI and three image sensor options:
- Large 4K 1-inch sensor for the highest UHD quality
- High-speed 4K60 sensor in UHD quality
- Full HD with outstanding performance in low light and difficult vibration conditions
R9-418 4K 1 inch sensor
The 1-inch sensor with a wide light-receiving range delivers clear, noise-free and high-resolution images, and features mechanical image stabilization.
- 1-inch Exmor R CMOS sensor
- 14.4 megapixel
- Best picture quality
- 4K with 18x zoom, FHD with 24x zoom
- Optical image stabilizer
- Black level
- Color matrix
- ND filter
- Real WDR
R-420 60fps UHD sensor
Bolin's BM4620 image module equipped with the Sony IMX715 image sensor, 8MP resolution and 20X optical zoom delivers high quality and clean noise-free images at up to 60fps.
- 1/2.8-inch CMX715 top-class sensor
- Sharp and clean UHD picture quality
- 20x optical zoom
- Super WDR
- Color matrix
- Gamma level
- EIS
- AI face recognition autofocus/exposure
R9-230 Super Stabilizer and Low Light HD Sensor
The latest camera block from Sony ultra-high-resolution 8M lens, 4M image sensor and Sony signal processor. The combination of these three core technologies provides stunning resolution, and the advanced AF, AE and AWB functions deliver faithful images even in low light.
- 1/1.8 inch STARVIS II sensor
- Improved high-resolution image quality
- Optical 30X 8M zoom lens
- Extended AF performance, spot focus - spot AE - spot AWB
- Wide dynamic range (Wide-D)
- Visibility Enhancer (VE)
- Super Low Light performance
- Super image stabilizer
PTZ movement - smooth, precise and quiet
- PAN: 340° (-170° to +170°); fully proportional, speed 0.05° to 100°/s
- TILT: 210° (-90° to +120°); fully proportional, speed 0.05° to 50°/s
- Preset: 255 positions, speed 100°/s, 0~5 steps adjustable, accuracy: 0.03°
- Preset picture profile
- Preset motionless
- PTZ track memory
- Quietness less than NC35
- Smooth and precise movement
- FreeD protocol for virtual reality production system (via FW upgrade)
Various control methods
- IP control
- Serial control
- IR remote control
- Software control
Control protocol:
- VISCA via IP
- ONVIF
- VISCA
- PELCO P/D
- FreeD (via FW upgrade)
Features
- On-screen character generator
- All firmware upgrades via IP
- Tally Light on the front and back
- POE++ and 12VDC/AC
- Built-in handle
- Genlock
- Secure fastening for HDMI cables
- Available colors: black, white
Comparison of the camera versions
| Cameras | |
|---|---|
| Others | |
| Color | Black or White |
Professional AV networks with NETGEAR M4250 switches
Whether NDI streams, Dante audio, PoE-powered cameras or complex video walls - the M4250 switches provide you with a platform that is specially tailored to AV-over-IP workflows.
Professionelle AV-Netzwerke mit NETGEAR M4250 Switches
Ob NDI-Streams, Dante Audio, PoE-betriebene Kameras oder komplexe Videowände – mit den M4250 Switches steht dir eine Plattform zur Verfügung, die speziell auf AV-over-IP Workflows abgestimmt ist.
Warum ein NETGEAR M4250 Switch für Ihr AV-Projekt?
Preconfigured video profiles
- Simple selection of preconfigured profiles for NDI®, Dante™, AES67, ST2110 and many more.
- Immediately ready for use without in-depth IT knowledge
- Intuitive web interface with AV-focused design
NDI®-Ready - just get started
- Optimally matched to NDI|HX and NDI High Bandwidth
- Stability and low latency for live productions
- Ideal for PTZ cameras, encoders and NDI multiviewers
Dante™ & AES67 Support
- Precise synchronization and reliable audio transmission
- No manual VLAN setup required
- Maximum flexibility for audio routing and management
Power-over-Ethernet
- Supplies cameras, controllers and encoders directly via the network cable
- Up to 90W PoE budget per port (depending on model)
- Reduces cabling and installation effort
Fanless or whisper-quiet
- Models with passive cooling for studios, conference rooms & theaters
- Rack mounting or desktop operation possible
Lifetime guarantee
- Lifetime limited hardware warranty for the original purchaser
- NBD replacement (Next Business Day) for registered products
- 90 days free technical support
- Optional ProSUPPORT contracts available
Our offer - Consulting & Integration
Selection of suitable M4250 models
Optimization for NDI & Dante
Setting up VLANs, QoS and PoE
Integration into existing infrastructure
Unser Angebot – Beratung & Integration
Auswahl der passenden M4250 Modelle
Optimierung für NDI & Dante
Einrichtung von VLANs, QoS und PoE
Integration into existing infrastructure
