PTZOptics Studio Pro camera
-
Free shipping in Germany
-
5-year guarantee
-
Ordered by 3 pm - dispatch on the same day.
EAN |
0840170500555 |
Artikelnummer |
PT-STUDIOPRO |

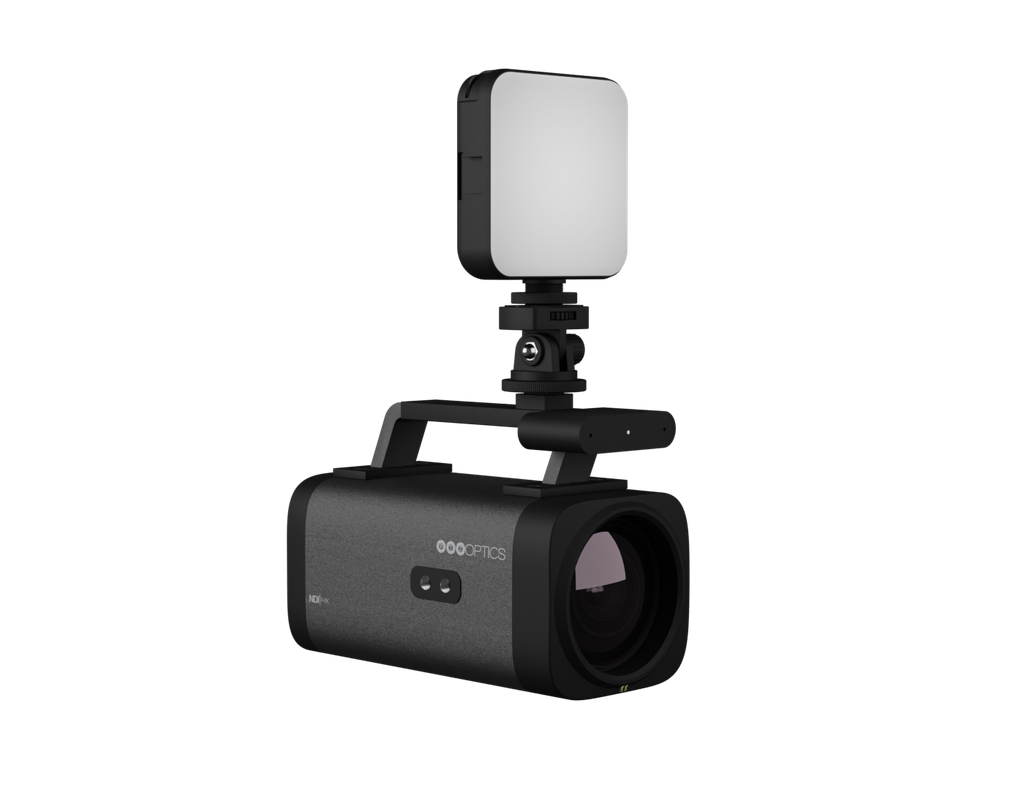

The PTZOptics Studio Pro is a multifunctional box camera for content creation and live streaming. This 1080P 60fps camera has a 12x optical zoom lens with a field of view of 72.5°. The ultra-fast time-of-flight sensor enables the camera to focus on moving objects very accurately. In addition, users can switch between advanced focus settings for beautiful bokeh effects.
This camera outperforms many DSLR cameras with its multi-output capabilities and toggle switch that allows users to choose between portrait and landscape modes.
Flexibility and compatibility
Unlike most DSLR cameras, the Studio Pro has HDMI, USB and IP output options that can be used simultaneously. This makes this camera ideal for complex setups. In addition, this camera comes with NDI®|HX and does not need to be updated with a license. The Studio Pro can be powered via USB, 12VDC or POE and can therefore be used flexibly.
Additional features
The Studio Pro is equipped with a high-quality LED POV light that generates temperatures of up to 6000 K. This USB-powered light offers various modes from soft white to clear daylight. Other features include a noise-canceling microphone array and cold light surround.
Technical specifications
Image sensor and lens
- Video sensor: 1/2.8" CMOS, 2.07 megapixels
- Resolution: 1920x1080p @ 60fps
- Lens: Zoom 12x optical, 16x digital
- Horizontal field of vision 6.9⁰ ~ 72.5⁰
- Vertical field of view 3.9⁰ ~ 44.8⁰
- Min. illuminance: 0.5 lux
- Scanning mode: Progressive
- H/V Flip / Image Freeze: Supported
Power connection
- Input voltage: 5V (USB Power), DC 12v, PoE (802.3af)
- Power consumption: 6W
- Working environment: Indoor area
Physical specifications
- Material: plastic
- Dimensions: L147 x H 113 x D 77 (mm)
- Weight: 700g
- Operating temperature: 0° C ~ 40° C
Connections
- Color system H.264 / H.265 / MJPEG / YUY2
- Video format YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
- USB Video Communication Protocol: UVC 1.5
- Video bit rate 32 ~ 102400
- Audio: AAC, 96 Kbps, 128 Kbps, 256 Kbps
- Protocols: TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI, Multicast, SRT
Professional AV networks with NETGEAR M4250 switches
Whether NDI streams, Dante audio, PoE-powered cameras or complex video walls - the M4250 switches provide you with a platform that is specially tailored to AV-over-IP workflows.
Professionelle AV-Netzwerke mit NETGEAR M4250 Switches
Ob NDI-Streams, Dante Audio, PoE-betriebene Kameras oder komplexe Videowände – mit den M4250 Switches steht dir eine Plattform zur Verfügung, die speziell auf AV-over-IP Workflows abgestimmt ist.
Warum ein NETGEAR M4250 Switch für Ihr AV-Projekt?
- Simple selection of preconfigured profiles for NDI®, Dante™, AES67, ST2110 and many more.
- Immediately ready for use without in-depth IT knowledge
- Intuitive web interface with AV-focused design
- Optimally matched to NDI|HX and NDI High Bandwidth
- Stability and low latency for live productions
- Ideal for PTZ cameras, encoders and NDI multiviewers
- Precise synchronization and reliable audio transmission
- No manual VLAN setup required
- Maximum flexibility for audio routing and management
- Supplies cameras, controllers and encoders directly via the network cable
- Up to 90W PoE budget per port (depending on model)
- Reduces cabling and installation effort
- Models with passive cooling for studios, conference rooms & theaters
- Rack mounting or desktop operation possible
- Lifetime limited hardware warranty for the original purchaser
- NBD replacement (Next Business Day) for registered products
- 90 days free technical support
- Optional ProSUPPORT contracts available
Our offer - Consulting & Integration
Selection of suitable M4250 models
Optimization for NDI & Dante
Setting up VLANs, QoS and PoE
Integration into existing infrastructure
