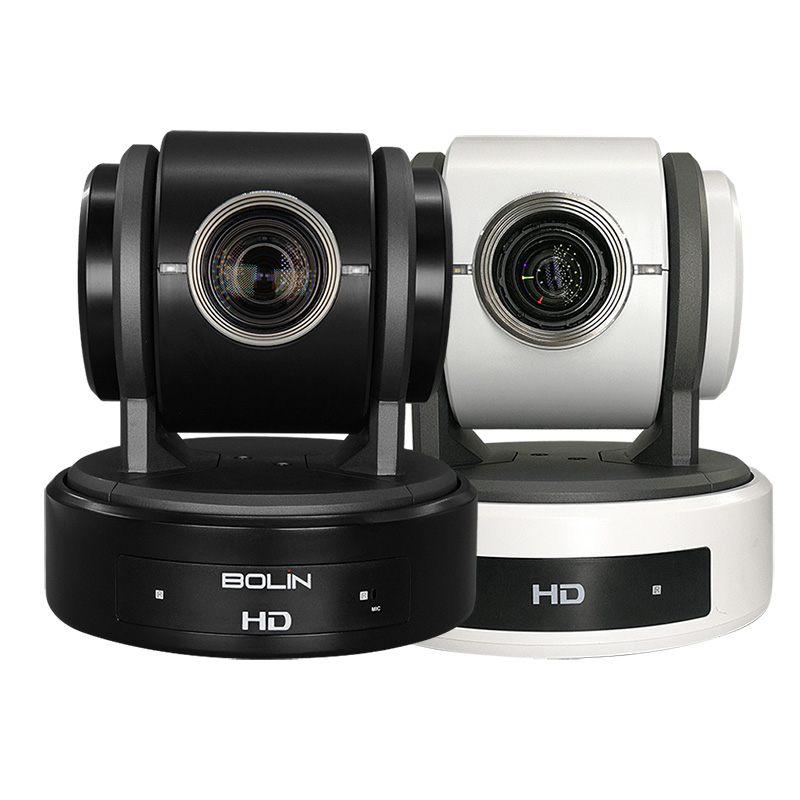

Bolin VCC-M2H-10BI-4FN1
-
Free shipping in Germany
-
Ordered by 3 pm - dispatch on the same day.
EAN |
6973775120775 |
Artikelnummer |
VCC-M2H-10BI-4FN1 |
The VCC-2 model from Bolin is a compact camera, a real "all-rounder" and can therefore be used for many purposes. The device fits into most video production workflows and is a functional video conferencing camera with all the necessary functions for entry into the professional world of audio/video transmission via the Internet.
Video output takes place simultaneously via 3G-SDI, HDMI, IP and USB 2.0, which allows integration into almost any production environment.
Cloud video conferencing, simple RTMP and RTSP streaming, quiet and smooth movements with camera presets, web interface for quick configuration, display and movement of the camera - all this is offered by this model for entry into the professional world of remote-controlled PTZ cameras.
Compact design without compromise
Compact and mobile housing design with a magnesium alloy base frame for durability and balance in meeting rooms and small broadcast studios.
As an entry-level PTZ camera, it offers high performance for a wide range of applications from small video conferences to various pro AV applications.
Developed with flexibility, quality and mobility in mind
- High-resolution Full HD images
- Simultaneous 3G-SDI, HDMI, IP and USB 2.0 video output with embedded audio
- Cloud video conferencing USB plug and play
- SDI/HDMI for ProAV
- Easy RTMP and RTSP IP streaming, view and move the camera during operation
- Quiet, fast, smooth movements
IP video streaming
- Remotely view smooth and stable video streaming (up to 1080p60) plus audio over an IP network via a web browser
- Supports RTSP, RTMP for online video and live streaming
- Fully functional PTZ camera IP control via the Visca Over IP protocol
- With VLC plug-in, HTML5 support for Microsoft Edge, Google Chrome, Firefox and Safari browsers
Features
Video output
Simultaneous 3G-SDI, HDMI 1.4, FHD IP, USB 2.0
Objective
Zoom: Optical 10X; Digital 2X. Offers a horizontal wide angle of 61° for conferences in huddle spaces or small studios.
Full HD picture quality with 60fps frame rate
SDI/HDMI video resolution supports up to 1080p60, 1080i59.94; IP video resolution up to 1080P60. High frame rate (60fps) FHD operation enables fast, spontaneous action recording and smoother playback of moving subjects.
Industry standard and compatibility
SDI: SMPTE-compliant SDI broadcast and ProAV workflow standards. HDMI: An HDMI video interface simplifies direct connection to a compatible video conferencing system, PC or HD video monitor.
Remote Control
Supports conventional serial RS232, RS422/485 interfaces via VISCA and Pelco P/D protocol as well as IP remote control over the network via Visca-over-IP and Onvif IP protocol, IR remote control.
Picture profile presets
Restoration of image parameter settings with presets and quick access function.
运动
Quiet and smooth PTZ movements with adjustable speed, 6 preset speeds can be set.
Embedded audio with video output
Built-in microphone and audio input, embedded audio with SDI and HDMI output and bi-directional audio IP streaming over the network.
Always up to date
The USB and IP firmware upgrade interface enables continuous improvement of camera functions and performance, also for customized function extensions.
Simple installation
Use the camera as a USB cloud conferencing camera for mobile use. Installation is simplified in a variety of environments. Convenient cabling, RJ45 RS232/422 control port. PoE power supply option to reduce power cabling requirements. Standard/ceiling/tripod mount with E-flip function.
Power supply
12VDC, PoE+ (IEEE 802.3at)
Technical specifications
Camera
- Image sensor: 1/2.8 inch CMOS 2.13MP
- Lens: 10X 4.7~47mm
- Digital zoom: 16X
- Horizontal angle of view: 60.9°(W)~6.43°(T)
- Aperture: F1.6(W)~F3.0(T)
- Min. illumination: 0.5 lux (day), 0.1 lux (night)
- Focus: autofocus, manual focus,
- White balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB
- Exposure: Fully automatic, Aperture priority, Aperture priority, Manual, Bright,
- Functions: Defog mode, flipper, mirror, de-flicker, WDR
- Noise reduction 2D/3D
- S/N ratio: ≥50db
mechanics
- Horizontal swivel movement: ±350 degrees continuous swivel (Zoom Adaptive Speed Range: 0.1°〜100°/S )
- Vertical tilt movement: +90 degrees to -30 degrees (zoom adaptive speed range: 0.1°〜50°/S)
- Preset positions: 128（Speed adjustable: Up to 150°/S, 6 presets on the remote control)
- Preset speed: 0~5 level adjustable
- Preset memory: YES, (preset memory for image parameters)
- Supporting the starting position
- Ambient conditions: Indoor
Interface
- Video output: SDI, HDMI, IP, USB2.0 simultaneous
- Video format (HDMI): 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p:60/59.94/50/30/25
- Audio-I/=: USB connection. (USB connection to 3.5 mm audio jack adapter for audio input x1, audio output x1, cable included)
- Control interface: 1XRJ45: IP; 2XRJ45: RS232/RS422/RS485, IR remote control
- Control protocol: VISCA / Pelco D / IP Onvif / VISCA over IP
- System upgrade USB2.0 (only for FW upgrade), System upgrade via USB 2.0
3G SDI signal
- 3G-SDI: Signal fluctuations 800mv -/+10% (external cable extension required 75-5, 128 twisted pair shielding, coaxial cable)
- Standard: SMPTE 292(1.5Gb/s), SMPTE 425-A(3Gb/s) With SMPTE352 SDI metadata supported
- Signalformat: 1080p:60/59.94/50/29.97/30/25; 1080i:60/59.94/50; 720p;60/59.94/50/30/29.97/2
USB signal
- USB connection: USB2.0, type B
- Compression: MJPEG、H.264
- Video format: 1920x1080, 1280x720, 720x576, 640x480, 320x240; frame rate: 30/25/20/15/10
- Compatible integration UVC
Network
- Video compression: MJPEG, H.264 /265
- IP video format: 1080p:60/50/30/25; 720p:60/50/30/25
- Protocols: IPv4, TCP/IP, UDP, DHCP, RTP, RTSP, HTTP, RTMP
- Browser support: HTML5 support for Microsoft Edge, Google Chrome, Firefox and Safari browsers.
- Audio compression: AAC-LC wideband audio coding (duplex communication supported, audio/video synchronization)
- OSD Customized OSD
- Compatible integration ONVIF, VISCA via IP
General
- Operating temperature: -10 to +50 (°C)
- Humidity during operation ≤80% gsuitable for use
- Power input: 12VDC, PoE+ (IEEE 802.3at)
- Power consumption: 10.8W
- Dimensions: 145x152x155mm
- Weight: 1.5kg
| Cameras | |
|---|---|
| Others | |
| Color | Black or White |
